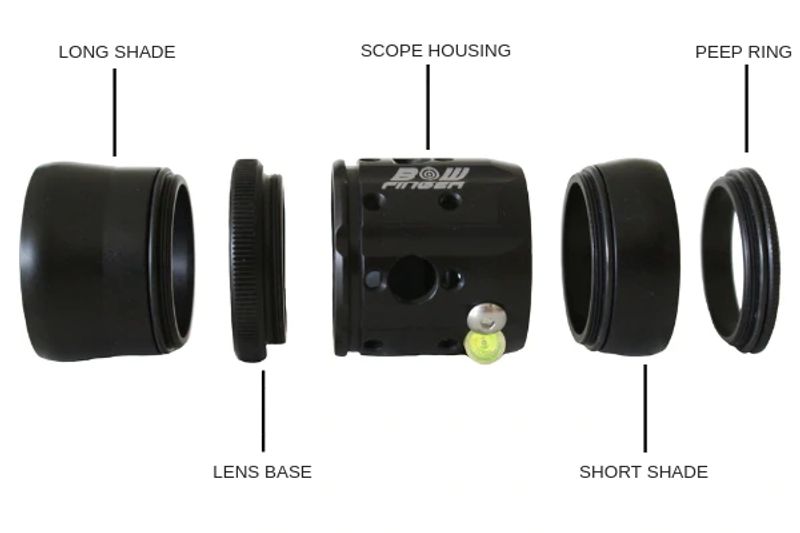

30mm Kit Includes:
- Scope Housing
- Lens Base
- Short Shade
- Long Shade
- Peep Ring
Features:
- Pin groove keeps pin straight and fiber behind the pin
- Nine 8/32 tapped holes for attaching light kit: One angled to intersect center of lens for illuminating a colored dot
- All 20/20 components are interchangeable with matching threads
- 5/16 Mounting Slot accepts a hex or square mounting shaft
- 8 Pin Mounting Positions
Useful Dimensions:
- Short and Long Shade have an outside diameter of 1.6"
- Lens Diameter: 1.350" / Max Diameter Lens: 1.355"
- Overall length of kit: 3.5" (Scope housing, lens base, long hood, short hood & peep ring)
- Inside diameter of scope: 30mm
**Filter Kits, Lens & Pin Sold Separately
